Production visibility · Windows & Raspberry Pi
Manufacturing Intelligence — Live production KPIs on every screen on your plant floor.
Manufacturing Intelligence connects to the production data you already have — SQL databases, REST APIs, files and Ignition — and turns it into OEE, output and downtime dashboards for offices, line-side screens and TV boards.
One shared view of how every line is running
Production data usually lives in MES and ERP databases, historians and spreadsheets — and nobody sees how the shift is going until it is over.
Manufacturing Intelligence reads that data where it already lives, calculates OEE and production KPIs on a schedule, and shows them on the PCs and TV displays where people actually work. Every value explains its formula and its source.
Designed for

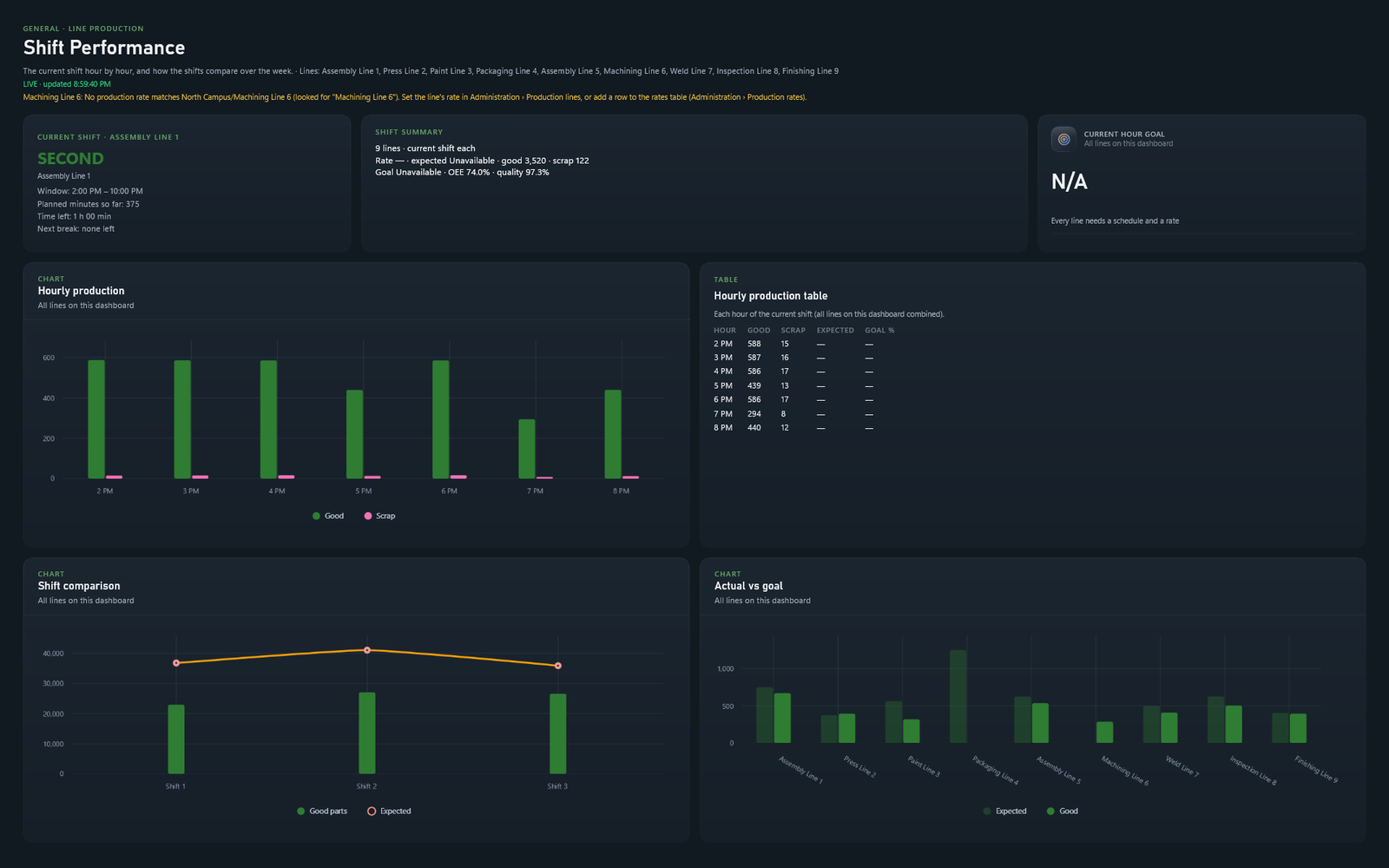

Shift performance is invisible until the shift ends
Live OEE, output against target and downtime on every line, refreshed automatically.
Data is locked in separate systems
Connect databases, REST APIs, files and Ignition without replacing the systems you run today.
Per-screen licensing makes wallboards expensive
One organizational license covers every display, PC and Raspberry Pi board in your organization.
Plant networks are isolated
Displays connect directly to your data sources and run without any internet connection.
What Manufacturing Intelligence does
Capabilities verified in the current release.
OEE and production KPIs

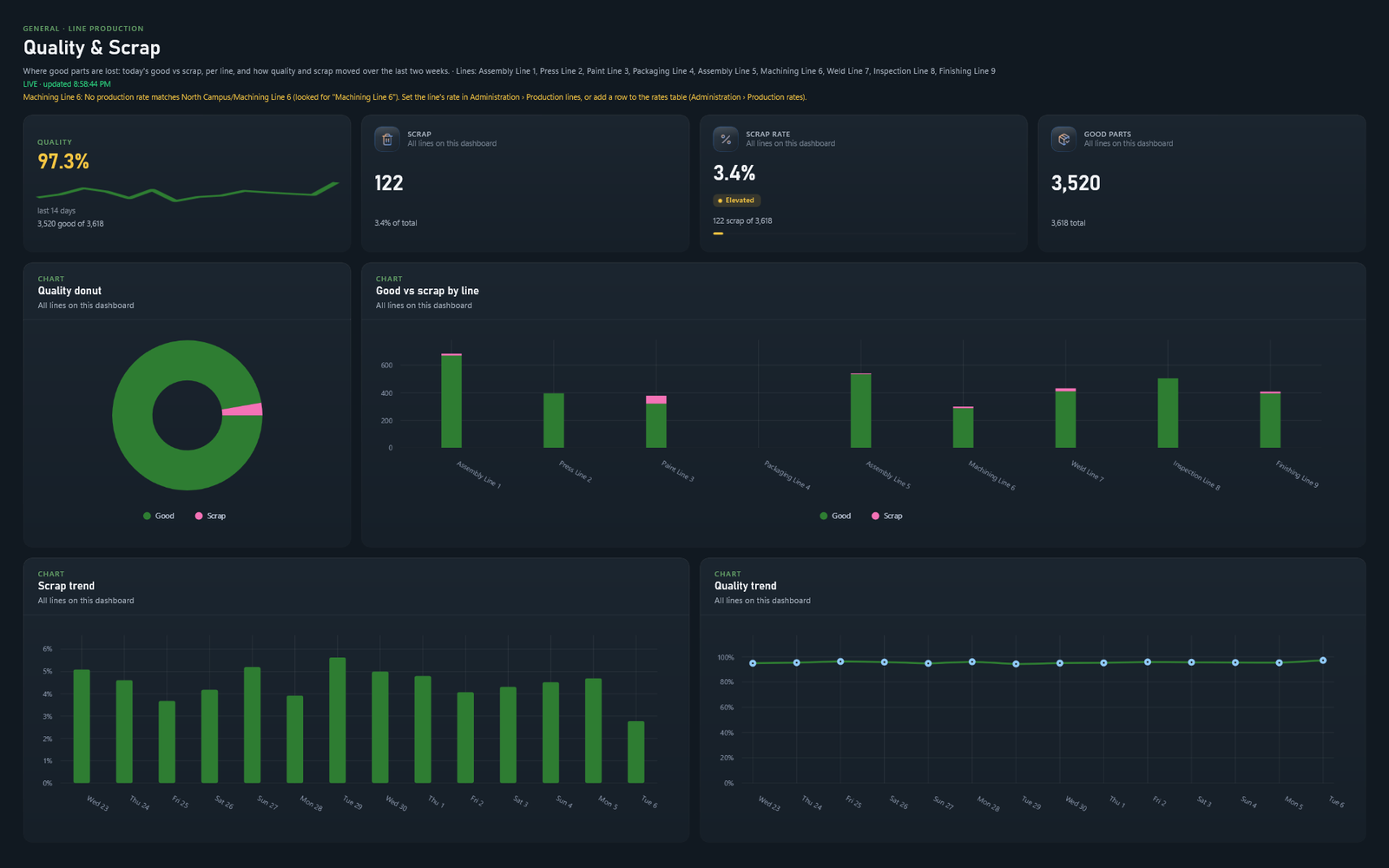

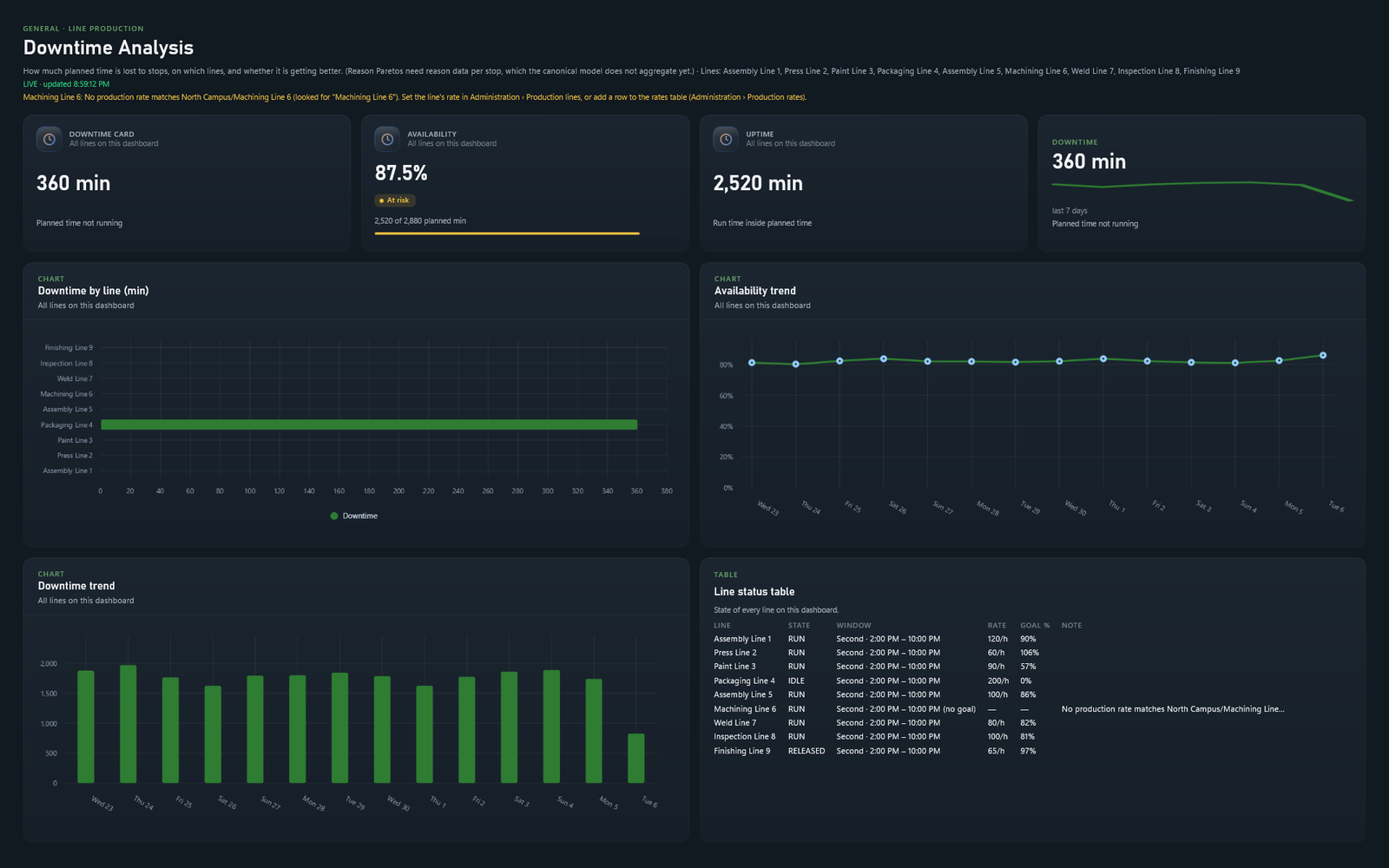

OEE, availability, performance and quality; good parts, scrap and scrap rate; downtime and uptime; production rate, actual versus target, shift and hourly goals, and line status.
Every KPI shows how it was calculated and where its data came from.

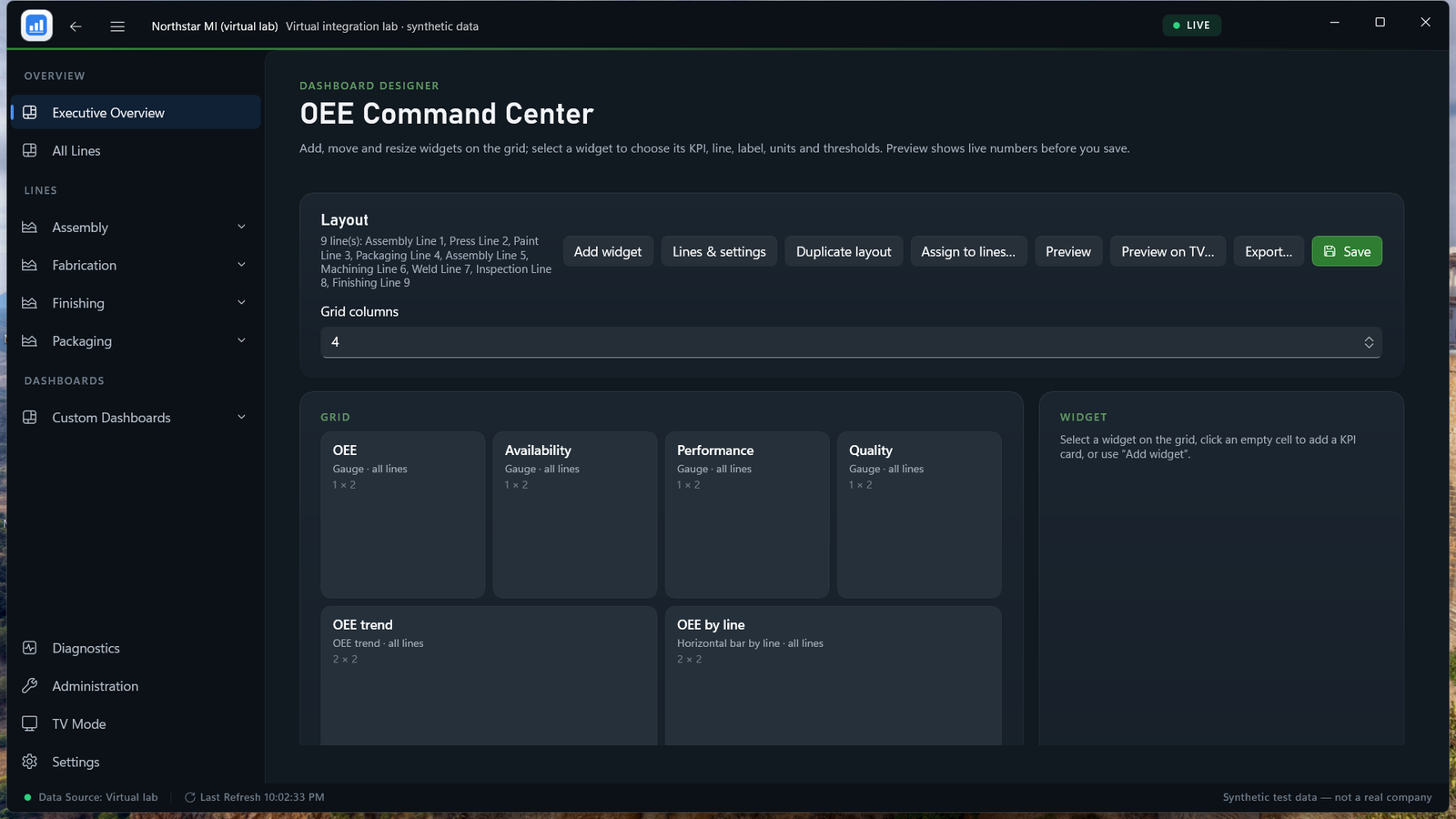

Dashboard Designer and templates
12 ready-made dashboard templates and 28 widget types on a drag-and-drop grid, from executive overviews to downtime and quality analysis.

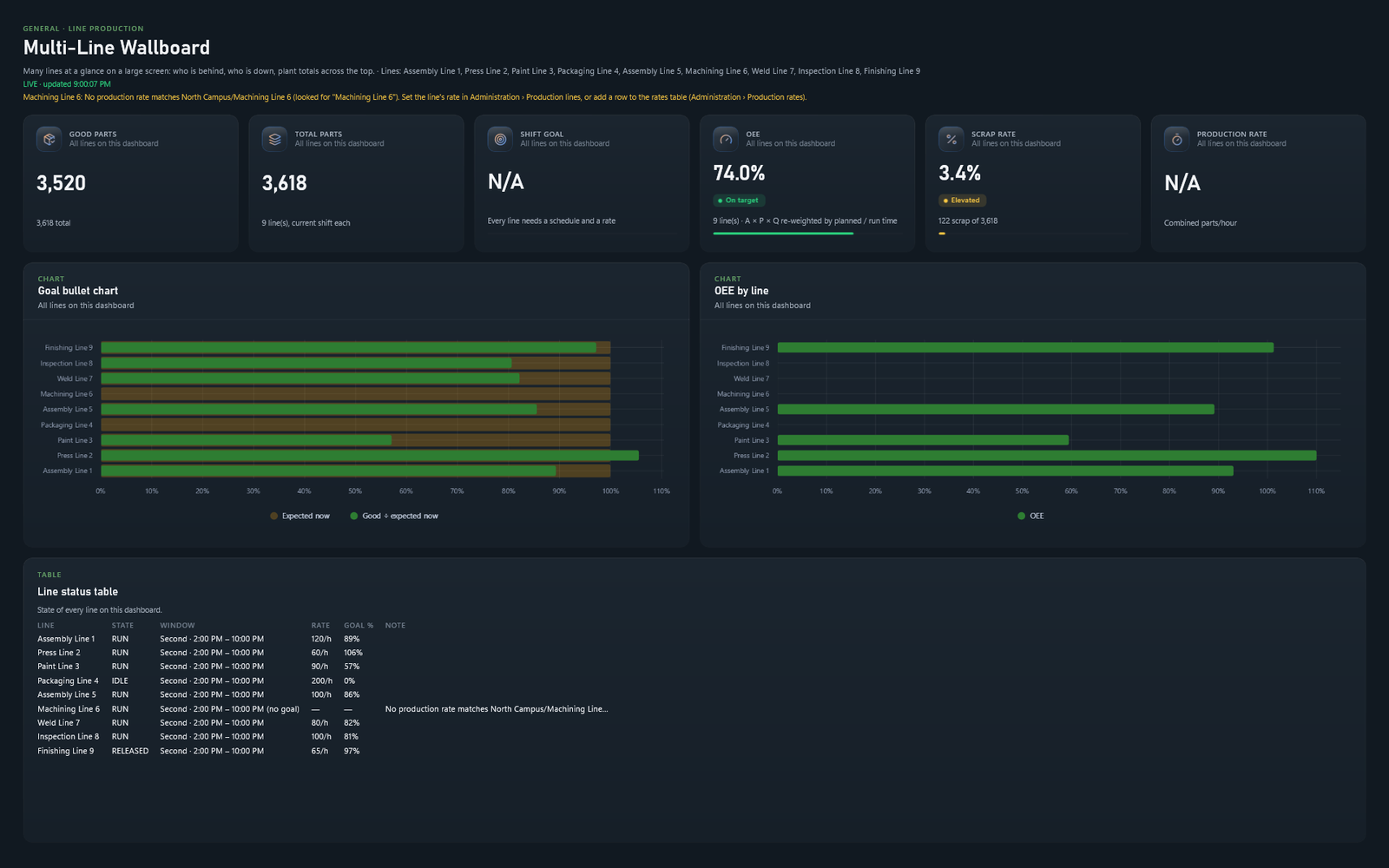

TV boards and wallboards
Rotating boards for line-side and wall-mounted displays, with previews at 1080p, 1440p and 4K and a kiosk mode that hides the cursor. Windows PCs and Raspberry Pi 4/5 displays are supported.

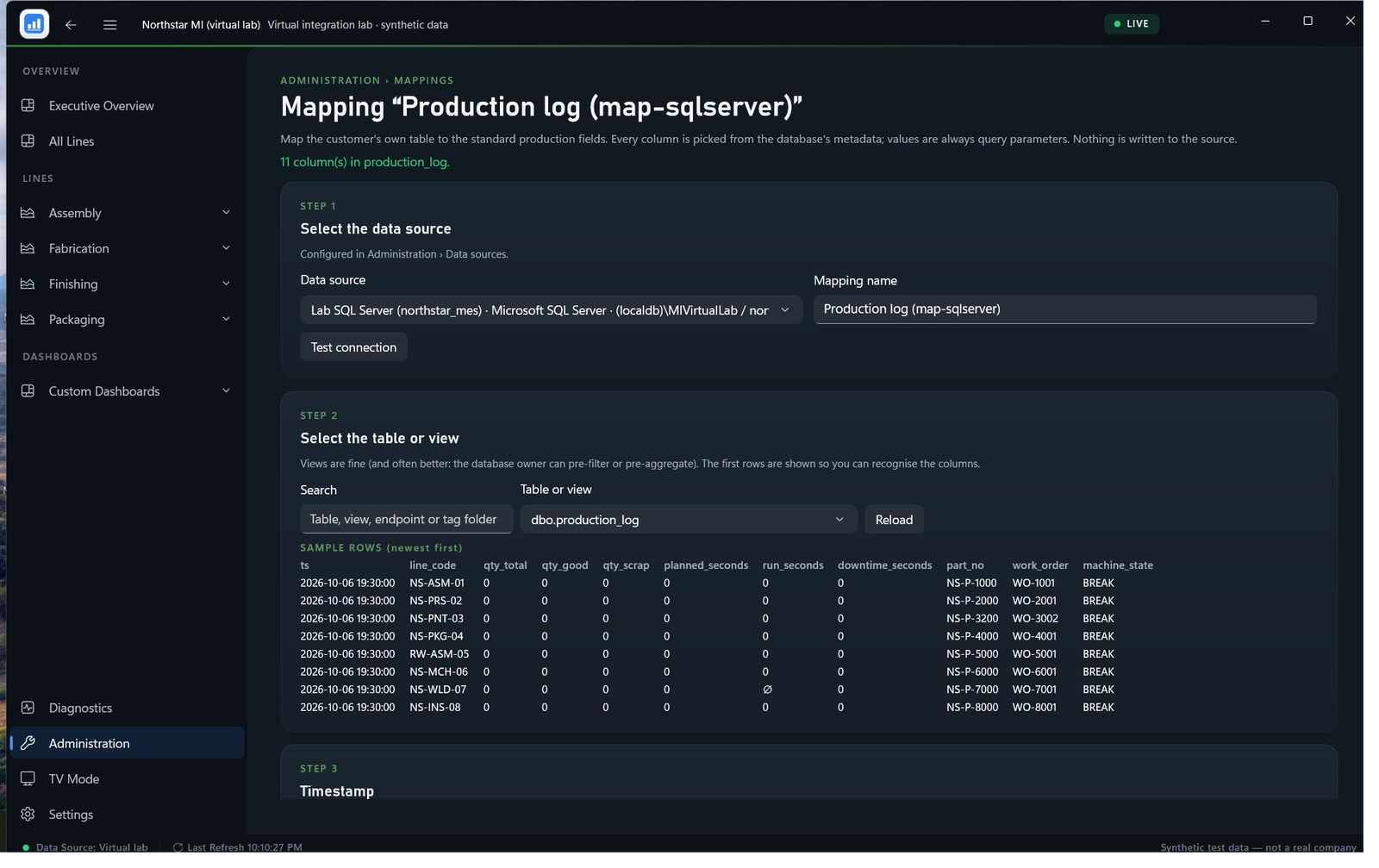

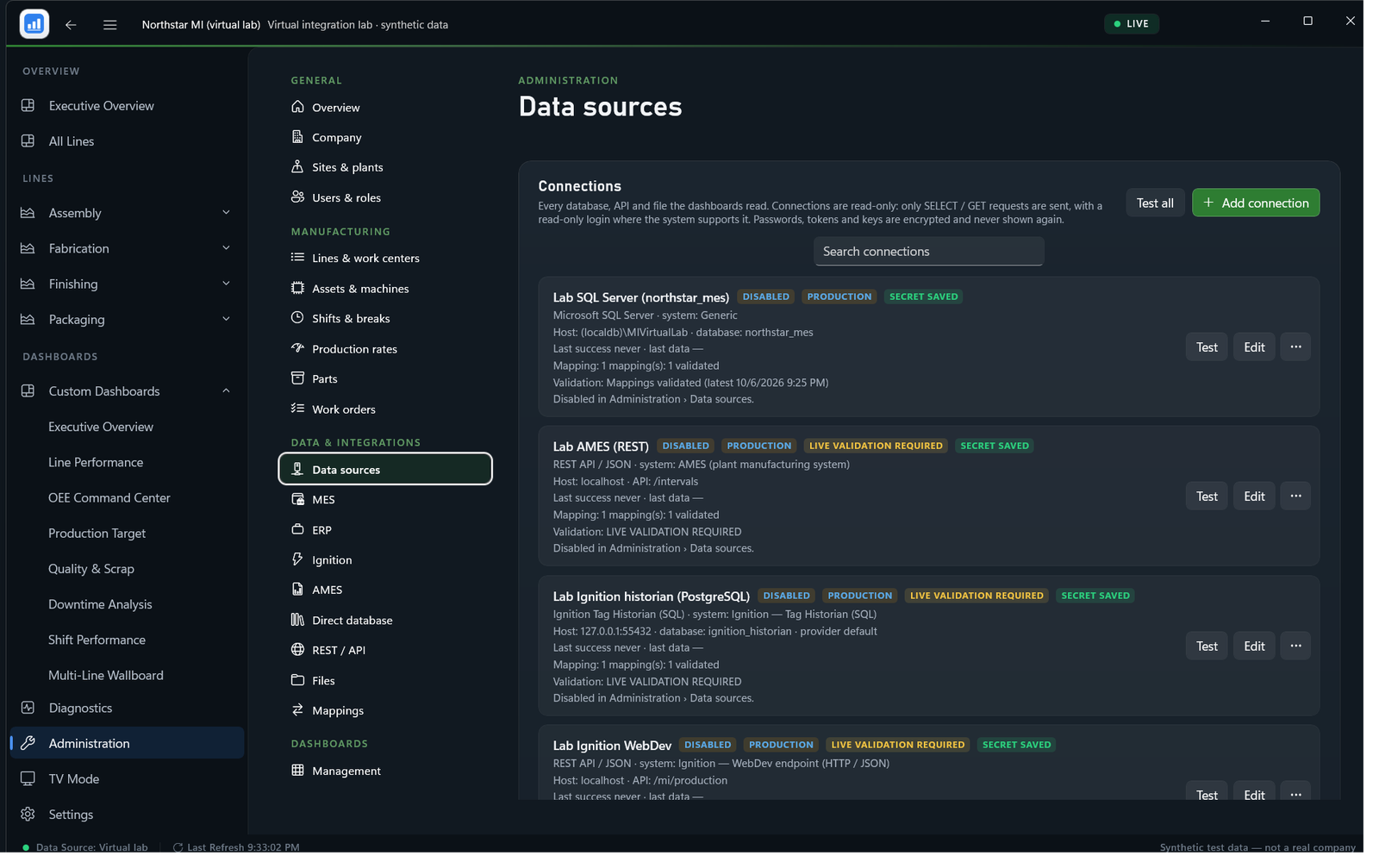

Connect the data you already have
Built-in connectors for SQL Server, PostgreSQL, MySQL/MariaDB, Oracle, SQLite, ODBC, REST/JSON APIs (bearer, basic, API key and OAuth client credentials), CSV and JSON files, and Ignition (Tag Historian, Transaction Groups and WebDev).
ERP systems such as Microsoft Dynamics 365, SAP, Epicor, Infor, Plex and Acumatica are connected through their databases or REST APIs using the generic connectors.

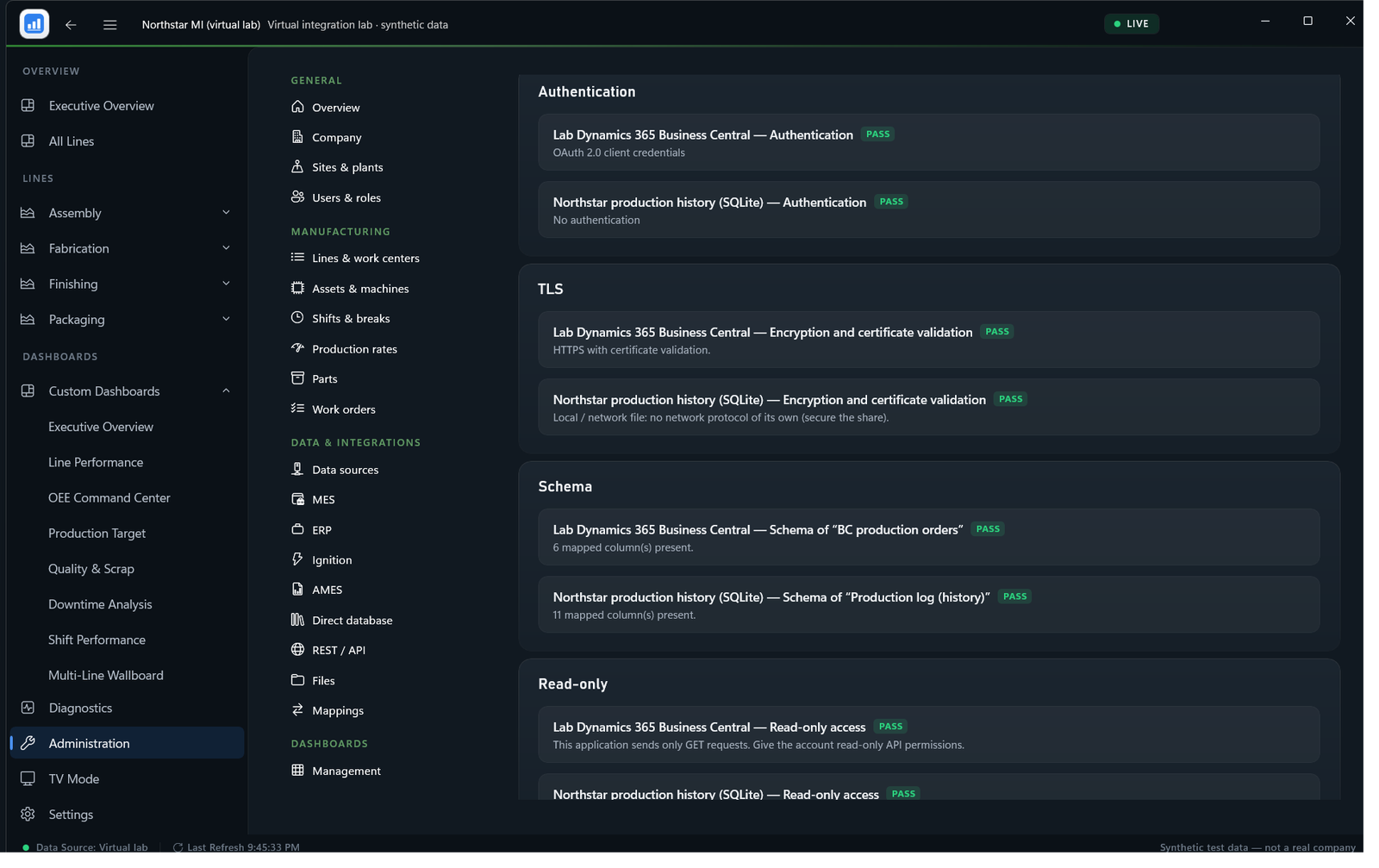

Go-live validation and diagnostics
A Go-Live Validation wizard, data-health checks and diagnostics confirm that every line has data, rates and schedules before boards go on the wall.
Reports, roles and backups
PDF reports, Viewer and Administrator roles with an optional PIN, a configuration audit log, and configuration backup, import and export.
Dashboards and demos

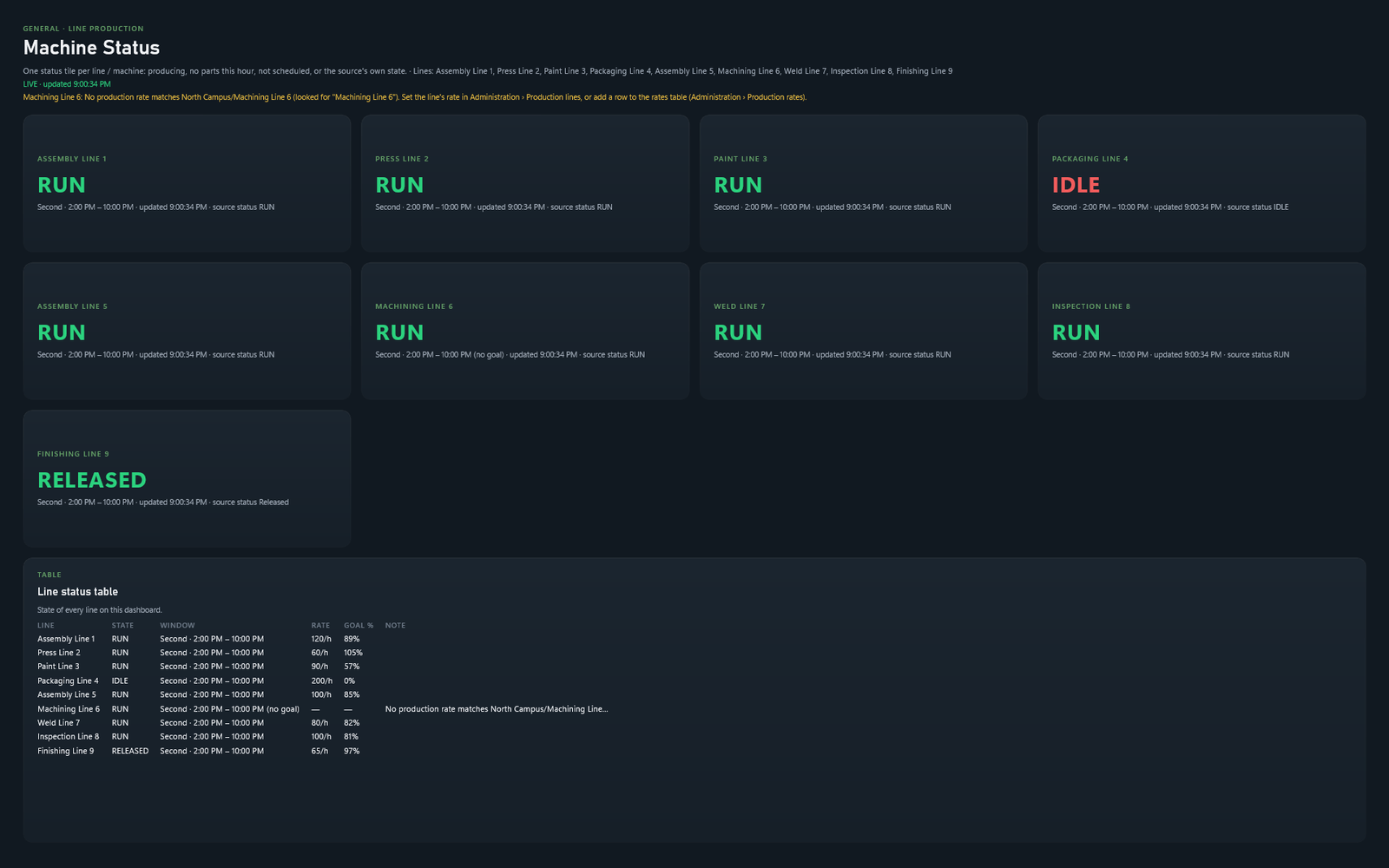

Screens and recordings from Manufacturing Intelligence running with demonstration data. Videos load only when you play them.
Technical specifications
| Administration and display PCs | Windows 10 version 1809 (build 17763) or later, 64-bit (x64 or ARM64). Self-contained — no separate .NET installation. |
|---|---|
| Raspberry Pi displays | Raspberry Pi 4 or 5 running Raspberry Pi OS (Bookworm or Trixie, 32- or 64-bit), installed from an offline package. Contact us to confirm your display hardware before deployment. |
| Data sources | SQL Server, PostgreSQL, MySQL/MariaDB, Oracle, SQLite, ODBC, REST/JSON, CSV files, JSON files, Ignition Tag Historian, Ignition Transaction Groups, Ignition WebDev |
| Not supported | OPC UA, MQTT/Sparkplug B, Modbus and direct PLC connections. Connect through a historian, database or REST layer such as Ignition. |
| Architecture | Each display connects directly to your data sources and calculates KPIs locally. There is no central server to install and no cloud service. |
| Network | Runs fully offline on isolated plant networks. No internet connection is required. |
| Deployment | Configure on a Windows administration PC, then export the configuration (without secrets) to every display. |
| Licensing | Perpetual organizational license, delivered as a signed license certificate that travels with your configuration. |
Pricing & licensing
One license for your whole organization.
Manufacturing Intelligence is sold as a single perpetual license for your organization. Install it on as many PCs, TV displays and Raspberry Pi boards as you need, across the sites your organization owns or operates — without per-screen or per-user fees.
The license is issued to your organization's name, which appears on every dashboard and report. It covers your organization only and cannot be transferred to other companies.
Optional support, maintenance and custom integration services are quoted separately. Contact sales for details.
Organizational license
- Unlimited displays, PCs and Raspberry Pi boards within your organization
- Every site your organization owns or operates
- No per-screen, per-line or per-user fees
- Works fully offline — no internet connection required
- Signed license certificate, downloadable from your account at any time
Frequently asked questions
Is this a subscription?
No. Manufacturing Intelligence is a one-time purchase with a perpetual organizational license.
What does "organization" cover?
The license is issued to the organization named at purchase and covers the sites that organization owns or operates. If you need to cover affiliated companies, contact us before purchasing.
How are displays licensed?
After purchase, download your signed license certificate from your account and import it once in Administration. It is included automatically when you export the configuration to your displays — there is nothing to activate per screen.
Does it need an internet connection?
No. Manufacturing Intelligence is designed for isolated plant networks. Displays only need to reach your own data sources.
Can it read directly from PLCs?
No. Direct PLC protocols, OPC UA, MQTT and Modbus are not supported. Connect through the systems that already collect that data, such as a historian, an MES database or Ignition.
Which data sources are supported?
SQL Server, PostgreSQL, MySQL/MariaDB, Oracle, SQLite, ODBC, REST/JSON APIs, CSV and JSON files, and Ignition. ERP systems are connected through their databases or REST APIs.
Are updates included?
Your license is perpetual for the version you purchase and does not expire. Update and maintenance terms are published with each release; if you need specific update commitments, contact us before purchasing and we will confirm them in writing.
What do I need to install it?
A Windows 10 (1809 or later) or Windows 11 PC for administration. Displays can be Windows PCs or Raspberry Pi 4/5 boards. Everything needed is included in the installer packages.
Support and downloads
After purchase, your license key and the Manufacturing Intelligence installer are available in your account. Use the Devices page to see where the license is active and to move it after a reinstall or hardware replacement.
Online purchase paused A verified installer package is not available yet, so this product cannot be purchased or downloaded online. Contact sales for availability; no payment will be taken through this site until delivery is ready.
Put your production numbers where your people can see them.
One perpetual license for every screen in your organization.
